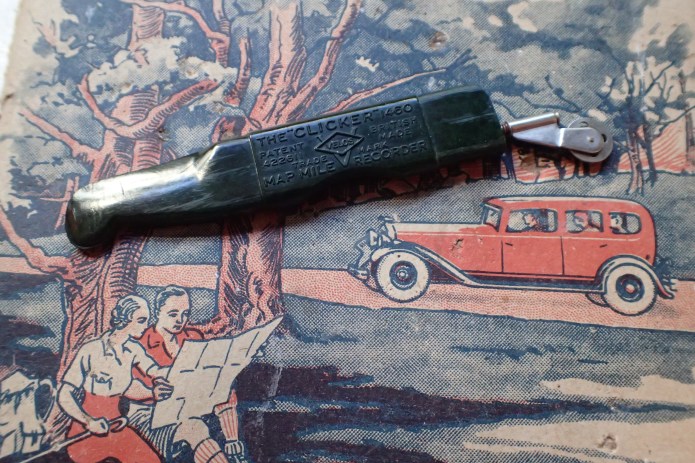

Velos ‘Clicker’ map measurer

“All 3 styles count the miles

on Mainroads, Coastlines and Byroads”

This is an oddity. Very little like it has been produced by any other manufacturer. It is as though the person who devised it had never come across a map measurer in his life and, with a clean sheet, came up with something new that, well, just kinda works.

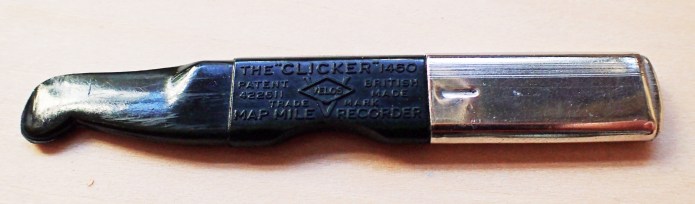

Velos Clicker, model 1460, with protective chrome cap covering the measuring wheel

British Industries Fair advertisement for manufacturers of ‘Velos’ Products, 1947

Frank Pitchford and Co. were established in the early twentieth century. By the 1930s the company was called Rees, Pitchford and Co. Based at 72-74 Victoria Street, London, SW1, they registered the brand name Velos on 14 March 1946.

The prominent ‘V’ appeared on a wide range of products made by the company. General Velos office supplies included glass inkwells, erasers, rulers, pencil sharpeners, staples and staplers, hole punches and date stamps. Their bakelite range included desk tidys and inkwells, ashtrays and stamp wetters, and the Velos Clicker map measurer.

The distinctive Velos ‘V’ brand appeared on a wide range of office products from the company

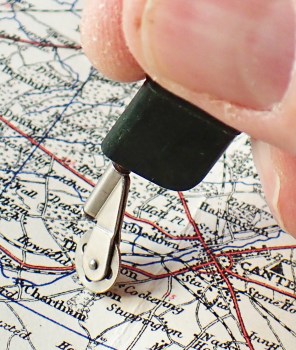

Simple to use, the little wheel is trundled along a line on a map, clicking every quarter mile

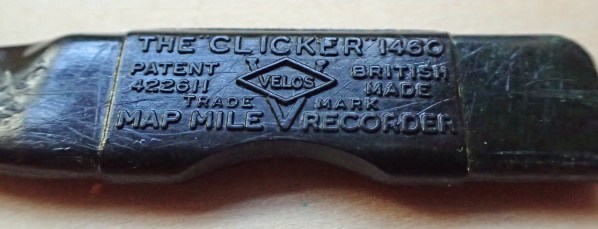

The side of the Velos Clicker, shown above, shows the English patent number- 422611. This was issued in 1935 and the drawing that accompanied the patent application shows well how the little wheel, when pulled along a line, would click as it rotated. The little wheel measures exactly one inch in diameter and clicks four times with each complete rotation. With a one inch to the mile map, this means that every quarter mile will be indicated with a click.

First versions of Model 1460 simply had a cambered wheel slid on to a pin mounted in the end of the handle. This could occasionally sashay rather than studiously follow a contour and the introduction of a small spring to the pin went a long way to calming its motion.

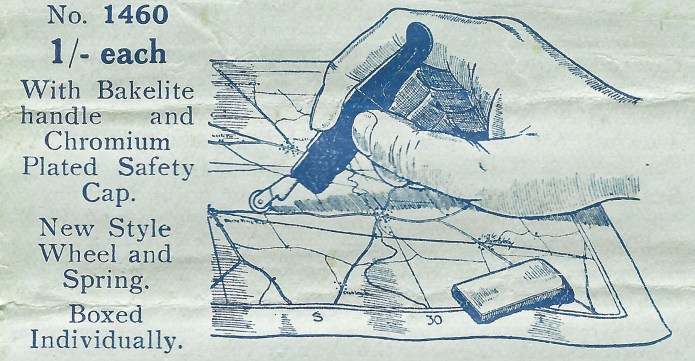

Contemporary drawing that came with the instructions on how to use the Velos Clicker

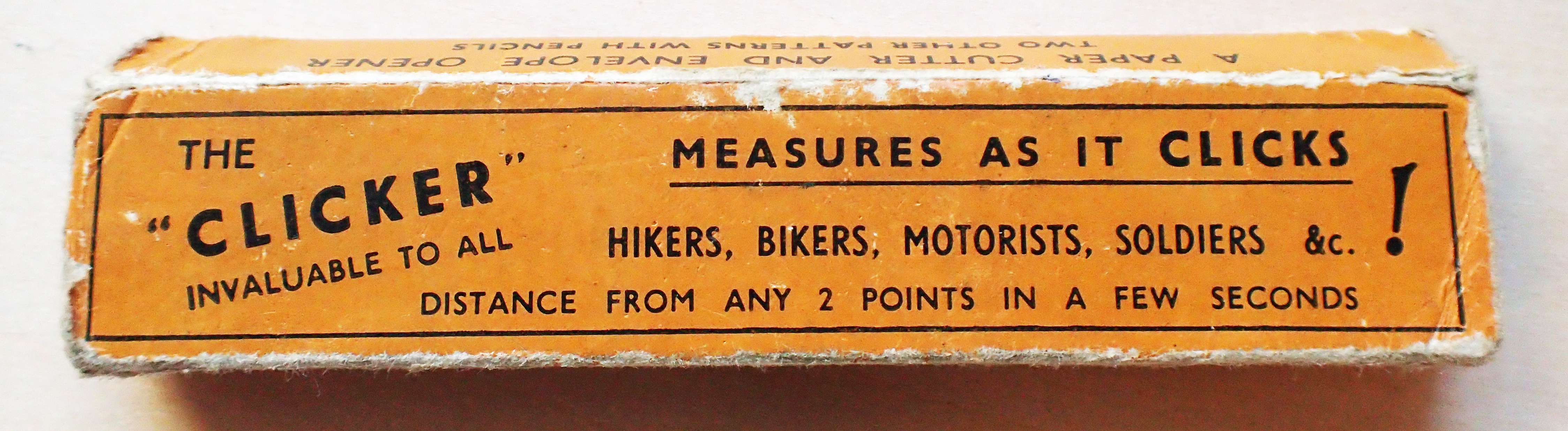

There was no risk that a user wouldn’t know how to use the instrument. Instructions were included on the box, information sheet and the side of most Clickers. Though there is a variant where the instructions were left off for some reason.

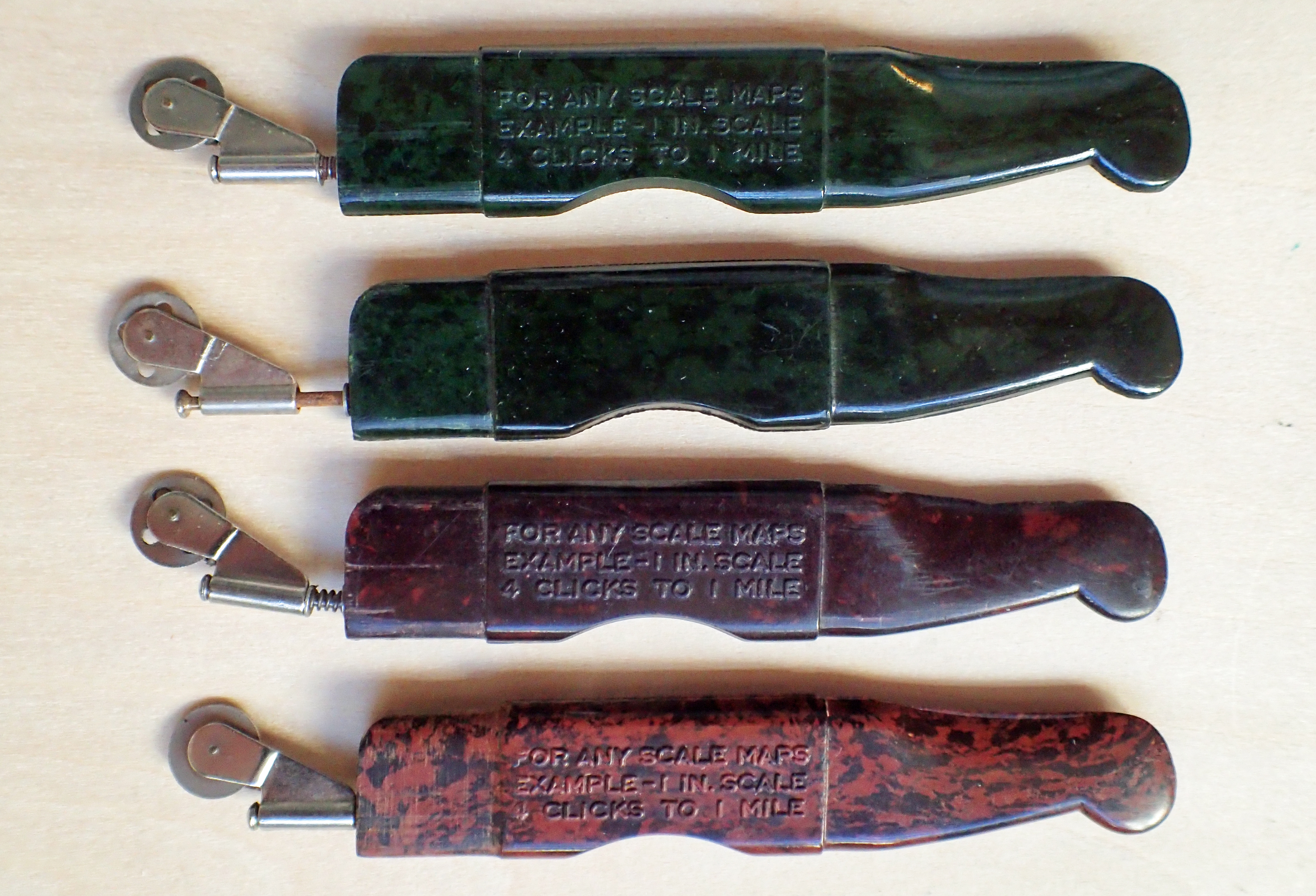

Four variants of the Bakelite Velos Clicker, model 1460. The development of the small wheel is apparent, as is the later inclusion of a small spring to keep the wheel steady and not swing out of position when moved along a line on a map.

The Velos Clicker shown here also incorporated a ‘paper cutter and envelope opener’ at the other end. Rees, Pitchford and Co. actually produced at least four variants of the Clicker. The cheapest at sixpence was Model 1458 and combined the Clicker with a propelling pencil, a simple cap covered each end. For ninepence, you could purchase Model 1459. This was similar but had heavier caps, eraser, pocket clip and was chrome plated. The classic model however was Model 1460. Costing one shilling, this Clicker has a bakelite handle with letter opener at one end and Clicker at the other end. Complete with new style wheel and spring and protected by a chrome plate cap when not in use, large numbers were sold. Another robust model later appeared. Model 1461 again combining the Clicker with a propelling pencil. Models 1458, 1459 and 1461 are rarely encountered today.

Velos Clicker- Model 1460. Black bakelite handle

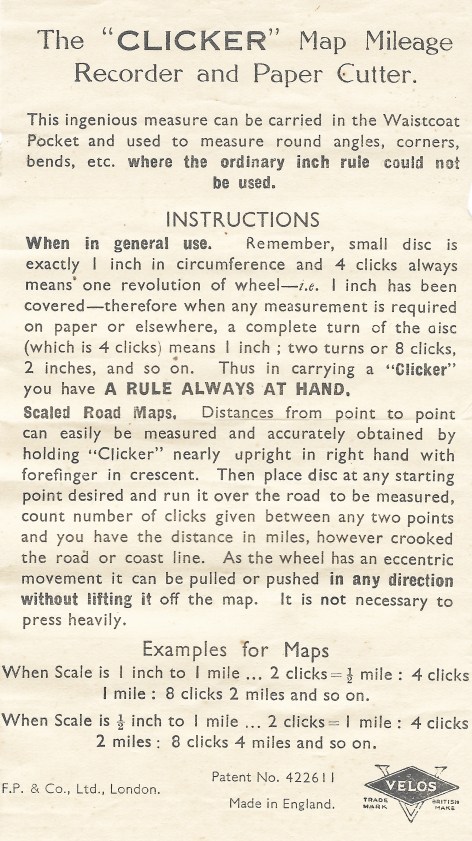

Instruction leaflet for the Velos Clicker

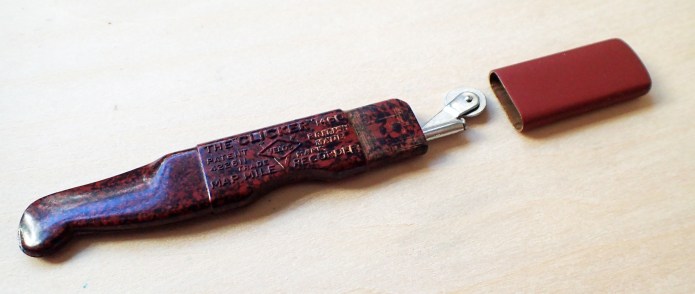

Velos Clicker- Model 1460. Brown bakelite handle

The Velos Clicker, ideal for measuring distance on older Ordnance Survey maps

If you want to see a little more of one of these delightful little measurers, one of my favourite YouTubers- Wood & Graphic, took an affectionate look at the Velos Clicker here.

Three Points of the Compass has looked at a few more Map Measurers in detail. Links to these can be found here.
