Leatherman Squirt series

Leatherman keychain tools- Squirt series

Leatherman Squirt series

User guide for the first three tools in the Squirt series, 2006

2006 user guide for the first three tools in the Squirt series, the S4, P4 and E4

The first Squirt series

Eight years after Leatherman released the Micra, its first keychain multi-tool, it released two more. In 2002 the stainless steel framed, aluminum anodised Squirt S4 and Squirt P4 hit the vendors shelves. The S4 had scissor jaws while the P4 had a small set of pliers.

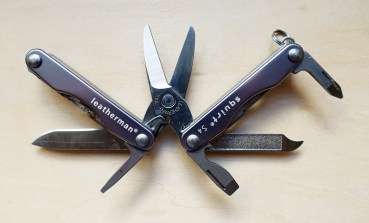

Leatherman Squirt S4

Leatherman Squirt S4

My Squirt S4 was made in 2007 and I purchased it the following year. It has remained a frequent companion on the majority of my hikes since then. I have swapped it out on occasion, most usually for a Victorinox, but I have usually found myself promptly returning to it. I really appreciate a full size set of good scissors. Beside the desired blade, as a glasses wearer, it is probably the extra small screwdriver that has seen most use, that and the bottle opener with numerous bottles of beer. On longer hikes the nail file has been useful and I have successfully worked on stove repair and changing internal trekking pole mechanisms with the screwdrivers.

Leatherman Squirt P4

Leatherman Squirt P4

The Squirt P4 is not my favourite keychain tool because of the lack of any scissors at all. But beside pliers, blade, files and various screwdriver heads, instead of the tweezers found on both E4 and S4, the P4 does include a short little awl. This implement is not particularly sharp when purchased new. In fact it is positively blunt. However it can easily be sharpened up. This is useful for poking holes in belts or fabric, even as an extra little blade. I am not one for modding my multi-tools but if I were, I would be stripping the P4 down in an attempt to swap this awl out with some tools on other Leatherman tools that I find less useful. Both the Squirt S4 and P4 were available in grey, yellow, orange, pink, black, red, blue, green and purple.

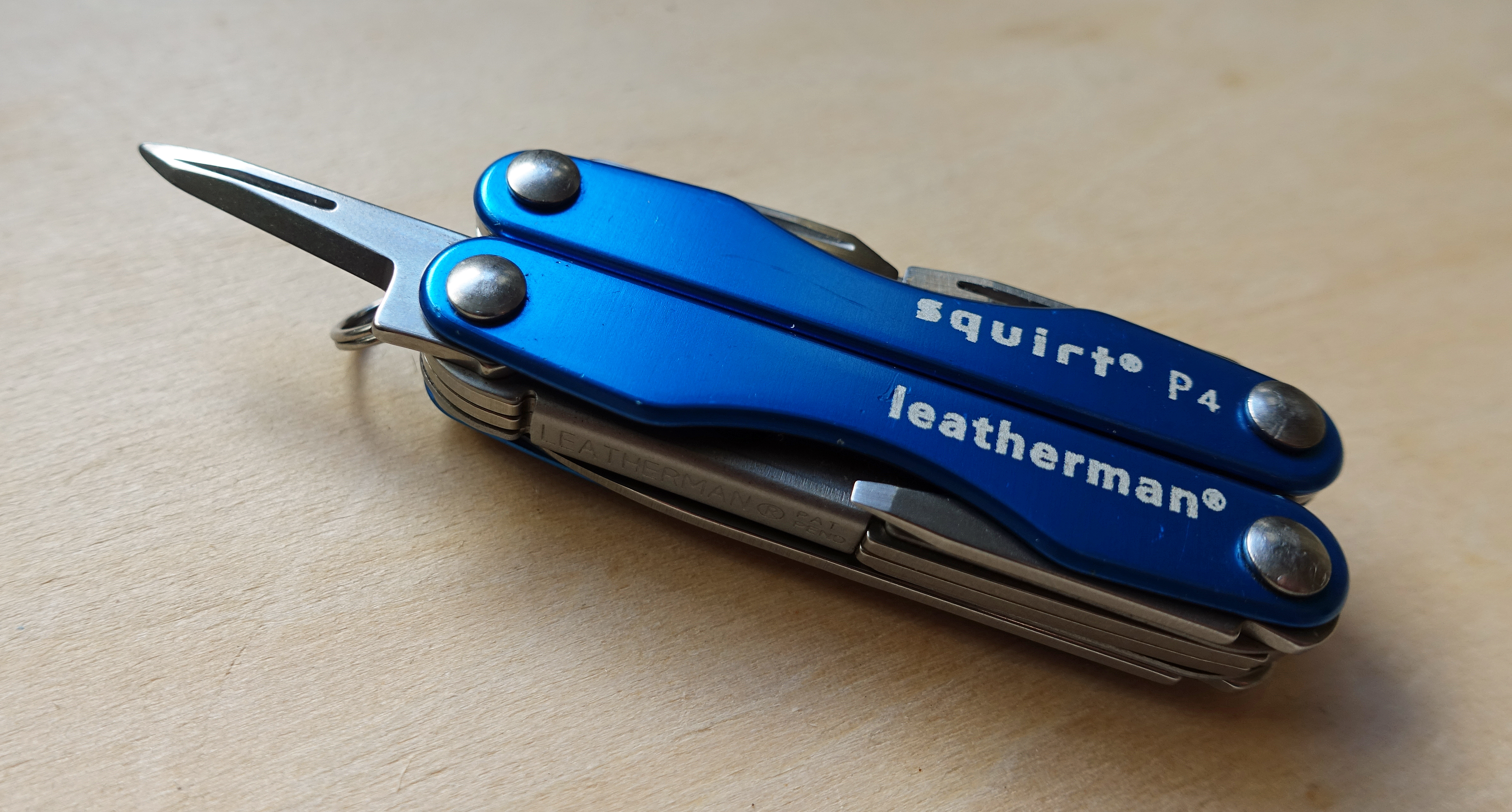

A short but useful awl is found on the Squirt P4. This is the only one of the Leatherman keychain tools to have this, a shame, as it would be a great addition to others in the line

A short but useful awl is found on the Squirt P4. This is the only one of the Leatherman keychain tools to have this implement, a shame, as it would be a great addition to others in the line

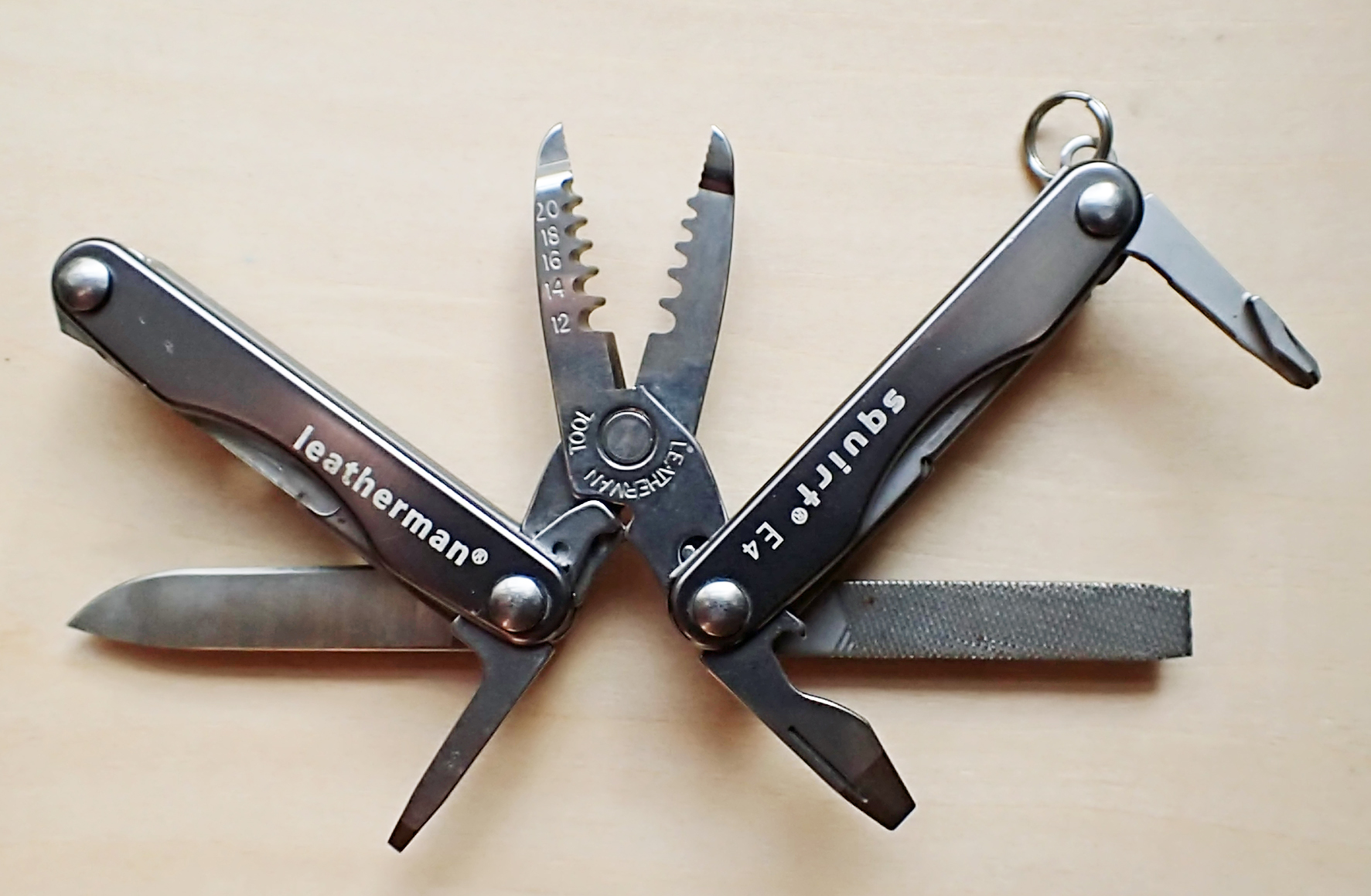

Leatherman Squirt E4

Leatherman Squirt E4

In 2003 Leatherman followed the S4 and P4 with the Squirt E4. First available in bright ‘inferno red’, for a year or two, the E4 could only be purchased at one of the Radio Shack outlets though it wasn’t actually branded as an E4. In the UK, it may have been available through their Tandy stores. These small shops were aimed at the home hobbyist and electricians, this was the market that Leatherman were attempting to tap with the E4. After a while, availability spread to other outlets and ‘glacier blue’ and ‘storm grey’ colours were added to the range. Mine is in the latter colour.

Tips of electricians (left) and normal pliers (right) compared

Tips of electricians (left) and normal pliers (right) compared

The electricians pliers are fitted with efficient wire strippers and a useful needlenose plier tip. Back tools include file and blade, however, no scissors. Not only do I complete very little electrical work on trail, with both Squirt P4 and E4 lacking scissors of any size at all, neither of these tools is going to make it out on to a hike with me.

The Phillips screwdriver on the E4 is a thing of beauty. Incredibly well formed it is a proper 3D shaped screwdriver tip that folds away in to the tool well. However I have found the 2D Phillips tip found on other Leatherman multi-tools more adaptable in practical use. Not only fitting a wide range of Phillips heads but also can be used on a small range of slot screw heads too. The 3D Phillips head is only found on the Squirt E4.

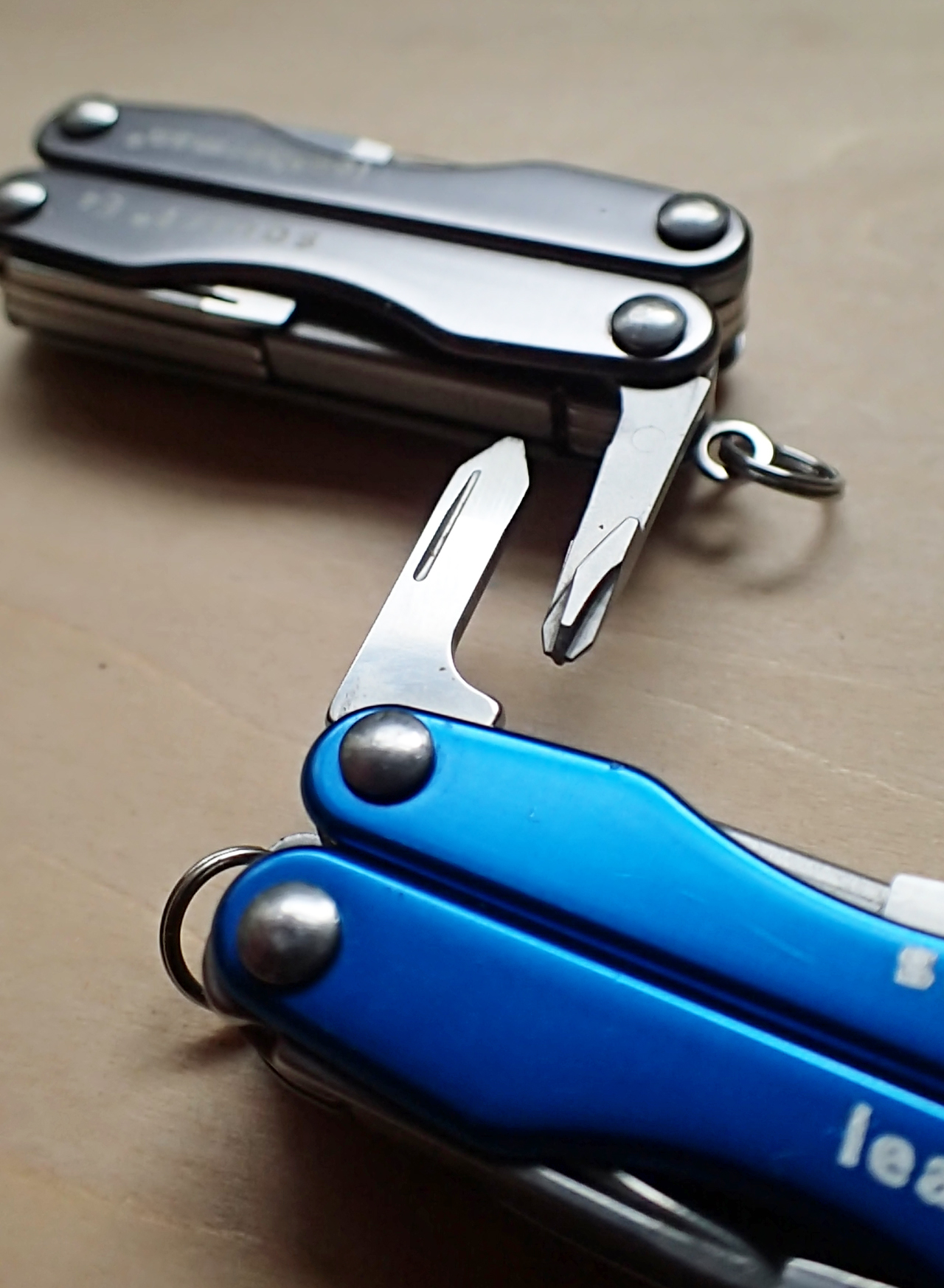

3D and 2D Phillips head screwdrivers on the Squirt E4 and Squirt P4 compared

3D and 2D Phillips head screwdrivers on the Squirt E4 and Squirt P4 compared

All three of the first Squirt series were discontinued in 2010 to be followed by two replacements.

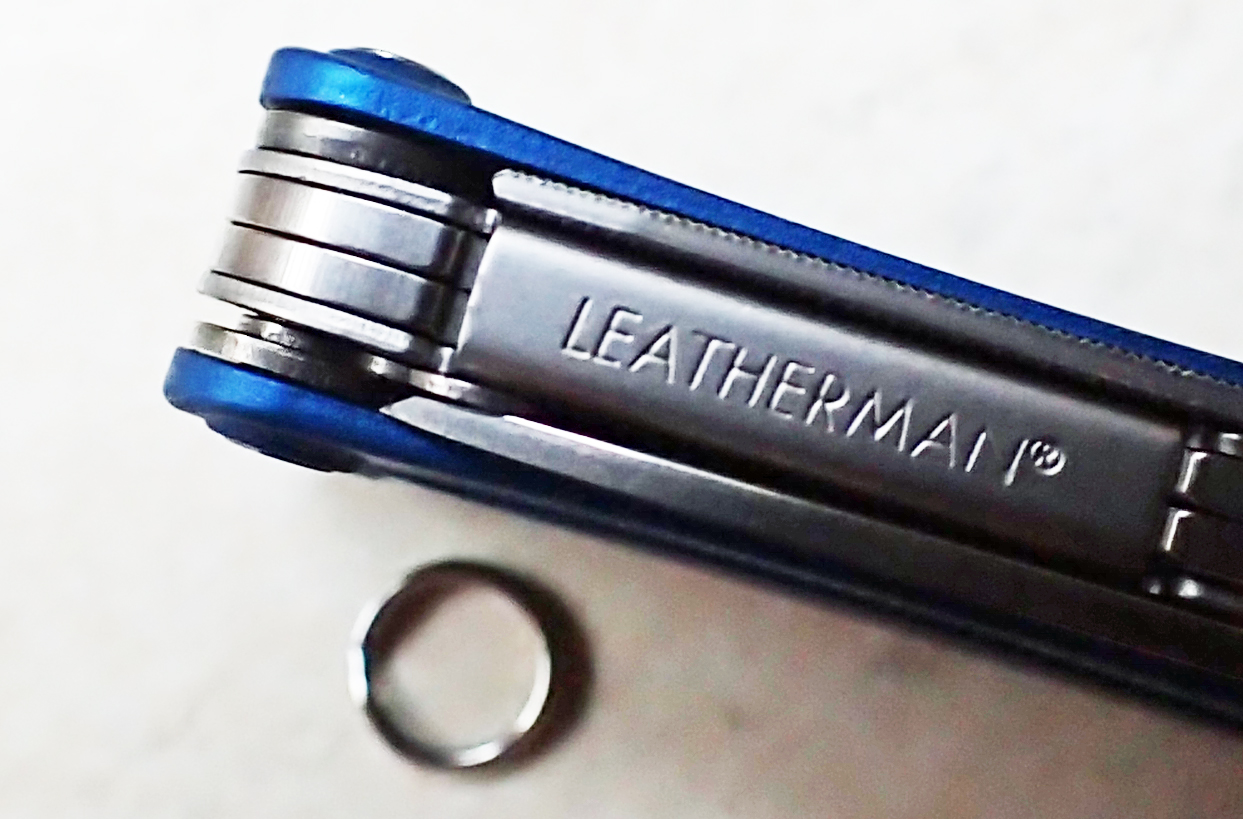

Few hikers would actually hand a Leatherman, or any knife, from a keyring. A split ring attachment is often superflous. If the ring is attached, the key ring attachment can be swung round and tucked out of the way

Few hikers would actually hang a Leatherman, or any knife, from a keyring. A split ring attachment is often superfluous. If the ring is detached, the key ring attachment can be swung round and tucked out of the way, as here

The second Squirt series

Leatherman Squirt PS4

Leatherman Squirt PS4

In 2010, hot on the heels of the discontinued Squirt S4, P4 and E4 came two revamped replacements. These were the Squirt PS4 and Squirt ES4.

The two tools pulled together the most popular elements of their forerunners. Effectively, each carries the same toolset other than the Squirt PS4 having standard pliers and the Squirt ES4 having electricians wire stripper pliers.

I would anticipate the PS4 having far greater sales over its brother. You shouldn’t simply write off the electricians pliers however. The useful quite thin electricians tip is capable of quite fine work such as pulling thorns and splinters, though it would be even more useful if they were truly needlenose tips.

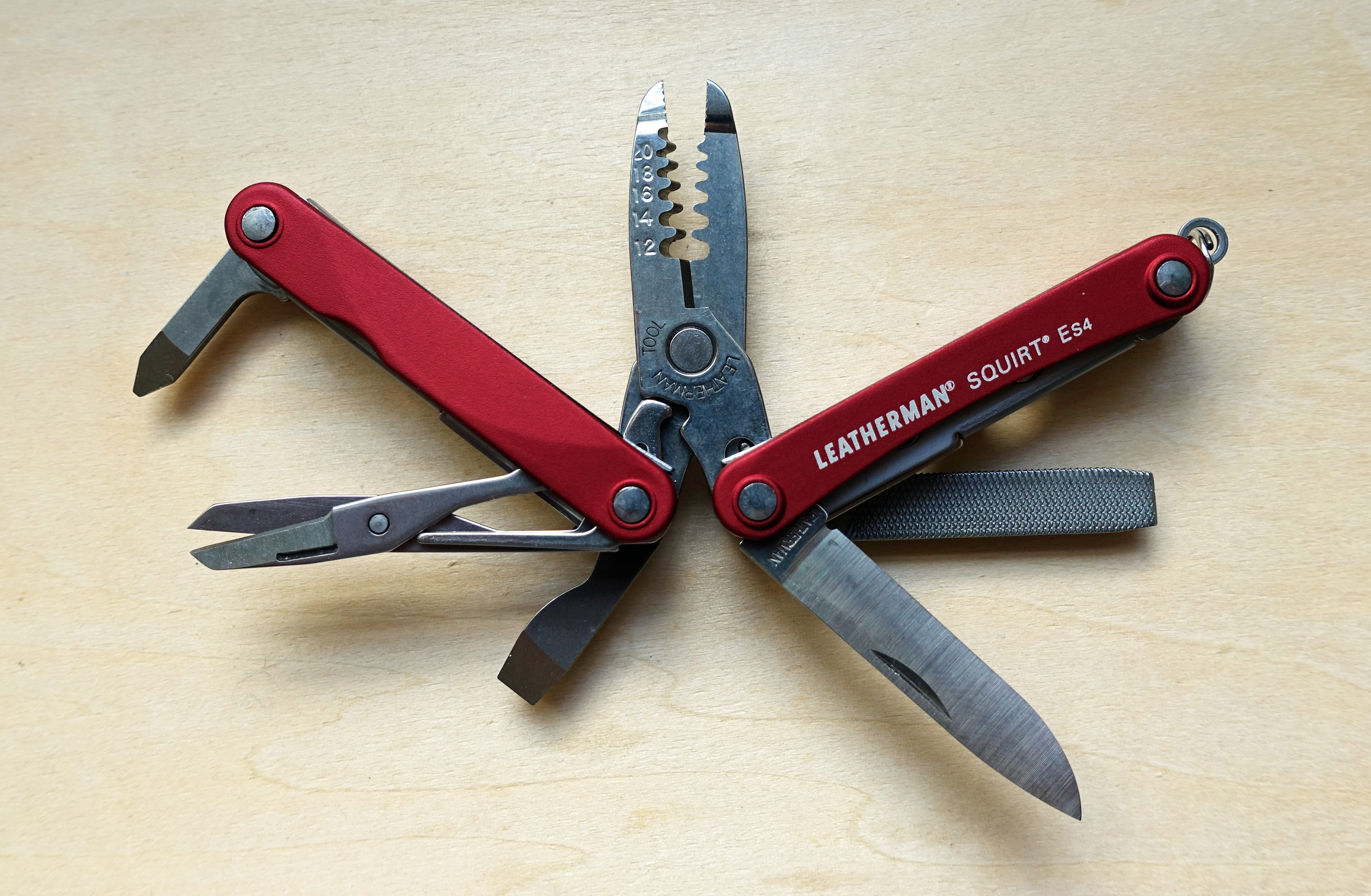

Leatherman Squirt ES4

Leatherman Squirt ES4

It was a very clever combination of tools that Leatherman managed with these two multi-tools, they really learnt from the earlier incarnations, this despite my personal preference that a few other aspects had been retained instead.

Both Squirt PS4 and ES4 were released with blue, red and black anodised aluminum scales and are still being manufactured today.

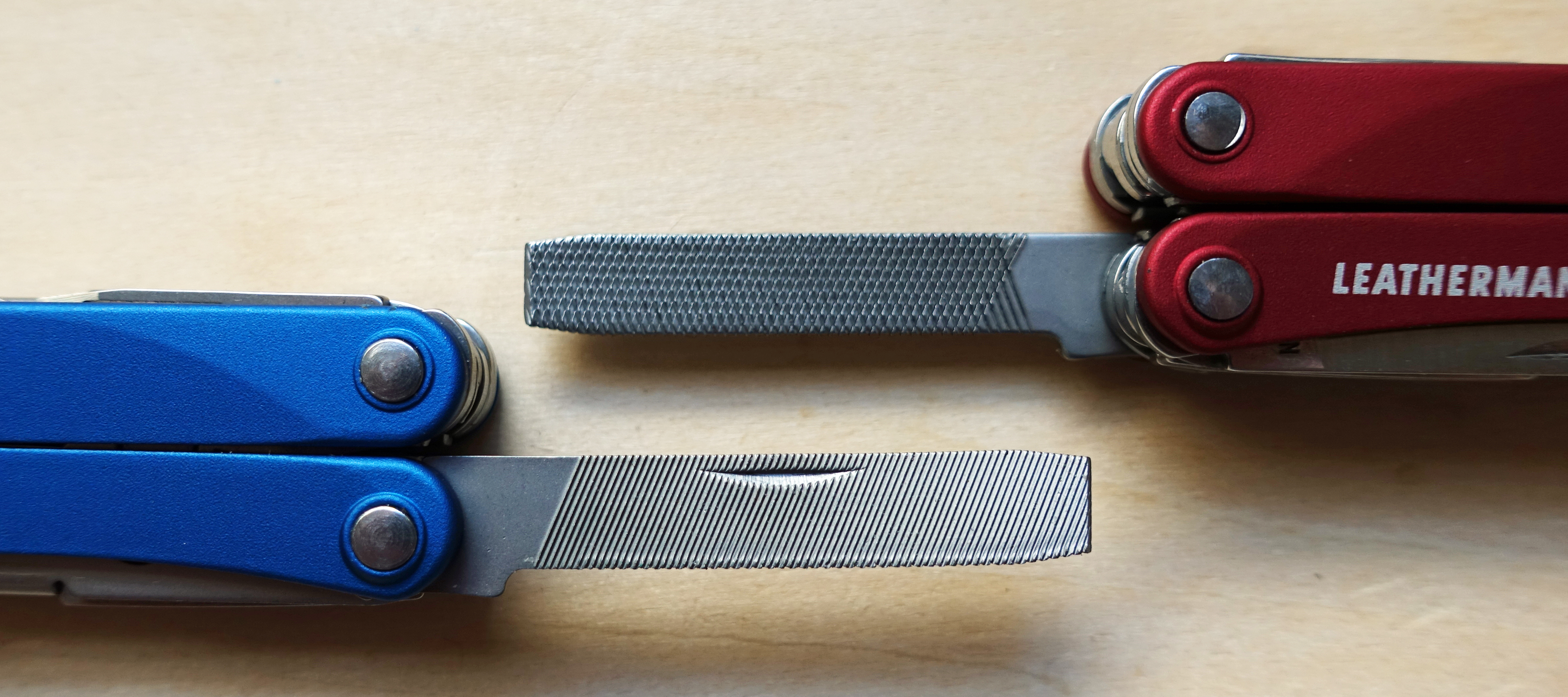

The two sides of the files found on the P4, E4, PS4 and ES4 Squirts compared. You can see the toothed edge to the file that can be used for notching wood, sawing plastic and not much else. Each of these tools has both file surfaces

While some of the mini Leatherman multi-tools have wood/metal files, that can be used as nail files, others come with dedicated nail files. All of these actually do a pretty good job and there is little to choose between them. Each nail file has either a nail cleaner or small flat screwdriver tip, though these will not handle a lot of torque.

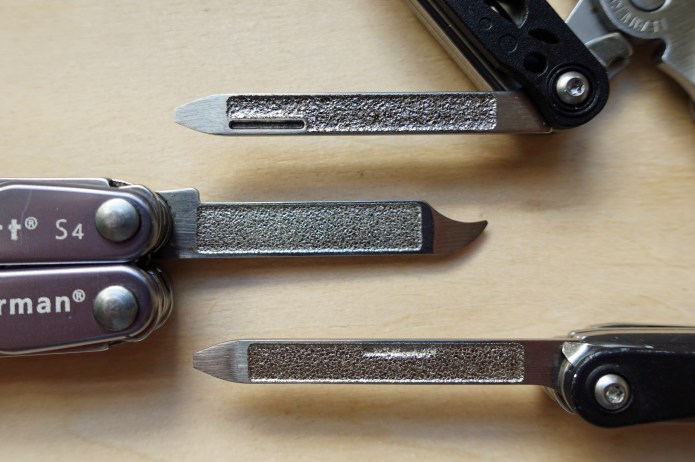

Nail files compared

Nail files compared. Top: Style PS, centre: Squirt S4, bottom: Style

This was a great series of small multi-tools from Leatherman. How could they follow it? By stripping them down to the essentials and adding a little style, that’s how. I shall look at what followed in the next blog.
